The JointABILITY a HAWK tool

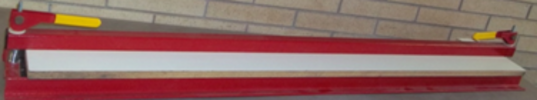

The JointABILITY is a matching edge jointer. It lets you create virtually seamless edge joints on every project. Elminate the chatter, tear-out, and sniping every woodworker faces with traditional jointers and table saws. Using a patented technique, the JointABILITY gives you the expertiese to create perfect fitting 90° matched edges using your router.
FEATURES
EASY GRIP CLAMPING MECHANISM
handles stock up to 2" thick with nylon bushings for easy release.
THREE SIZES
there are three sizes to choose from. the 36"(JA36), 60"(JA60), and 96"(JA96) to make sure you get the size you need.
EASY TO USE

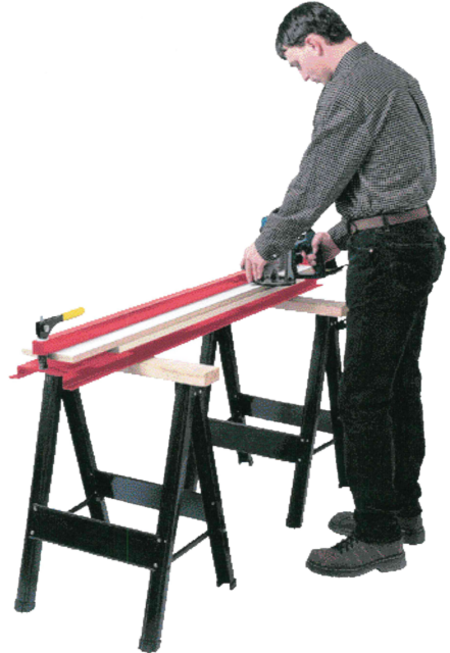

if you can run a router and circular saw you can cut a straighter line than with a table saw or jointer. Your work piece clamped in place, you move a router not try to hold a long board on a jointer or table saw
AFFORDABLE
for a fraction of the cost of a jointer or table saw, you can true an edge for gluing or cut straight lines for any size you need.
URETHANE MAT
to hold your work piece securely in place
WIDE STOCK SIZE RANGE
handles from 2" to an infinite width
EASY TO STORE
When you stand it in the corner or hang it on the wall, it takes up less than one square foot of space.
PORTABLE
at 28lbs for the JA36, 37lbs for the JA60, and 68lbs for the JA96, it weighs far less than a jointer or table saw, making it far more portable than either machine.
STEEL CONSTRUCTION
for a lifetime of reliable service
ROUTER VERSATILITY
you can use any router you own, you will be pleased with the accuracy of the cut.
DOUBLE LAMINATED MELAMINE
for a work surface that stays flat
NO SPECIAL STAND NEEDED
use any work bench or saw horse
MADE IN THE USA
.........................................................
ADVANTAGES
Anything up to 8' long that you can do with a jointer or table saw can be done with a JointABILITY, including making a ruff edge true! And with the JointABILITY you only need to make two passes MAXIMUM rather than the many passes you would have to make with a jointer.

The JointABILITY is a space saver all the way around. When in use, you only need nine foot of length to work with, not the 16+ feet you would need with a jointer. Then, when you're finished, just hang it on the wall to free up your shop space again.

Now you can cut and rip a sheet of whatever material you are using in only the space of the sheet. You move the router and circular saw rather than trying to maneuver the whole sheet into a table saw.
When cutting a joint, you can now cut it into the TOP of a board, wher you can see what you are doing, rather than cutting into the bottom as you would when using a shaper table or router table.

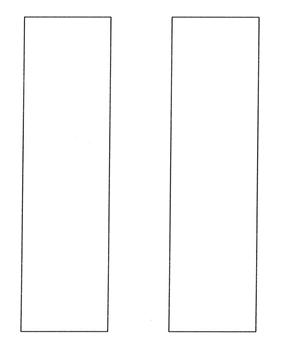

THE KEY ADVANTAGE is that the JointABILITY is a matching edge jointer. That is, you lable the edges and the JointABILITY so the two sides of the joint are cut on opposite sides of the JointABILITY. This guarantees that even if there is any curvature of the joint, it WILL match. We start with high grade steel tubing and then straighten it and finally clamp it in a fixture to hold it true as the substrate is fastened to it.

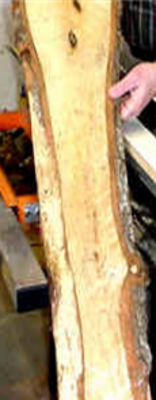

You can also take a rough cut slab and make a board out of it. Use the JointABILITY to make a cut on each side and have a finished, usable board!
With the JointABILITY, a dado or rabbet is cut with the side being cut facing you (not down as with a table saw) allowing you to see the results!

Use your circular saw with the JointABILITY to cut sheets to the desired size or give a first cut on uncut edges of lumber before giving it a finish cut with your router.

Perfectly squared joints for gluing and you can square your glued up panels as well.

WIth the JointABILITY, the shape of your work piece does not matter. Just mark the project line on the stock and place it in the JointABILITY. Any place you can draw a straight line, you can cut a 90° face.

Makes perfect joints every time. Even dado and rabbet joints. For use with many solid materials including hardwoods, softwoods, plywood, particleboard, orientated strand board (OSB), veneers of all kinds, laminates, even plastics. If you can cut it on your jointer or table saw, you can cut it on the JointABILITY.
SPECIFICATIONS

Max Length of Stock
Min Length of Stock
Max Thickness of Stock
Min Thickness of Stock
Max Width of Stock
Min Width of Stock
Weight
Overall Length
Overall Length with Router Holster
JA36
36"
None
2"
None
Infinite
2"
28lbs
39 1/4"
48 1/4"
JA60
60"
None
2"
None
Infinite
2"
37lbs
63 1/4"
72 1/4"
JA96
96"
None
2"
None
Infinite
2"
68lbs
99 1/4"
108 1/4"
OPERATING THE JointABILITY

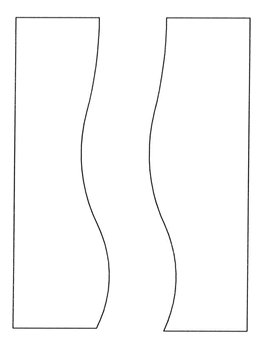

We start with high grade square tubing, then straighten it and finally attach it to the melamine in a fixture. Each step is to yield the straightest edge possible. Even if there were a bow to it, the JointABILITY will give matching curves to glue your edges up just by using both sides!

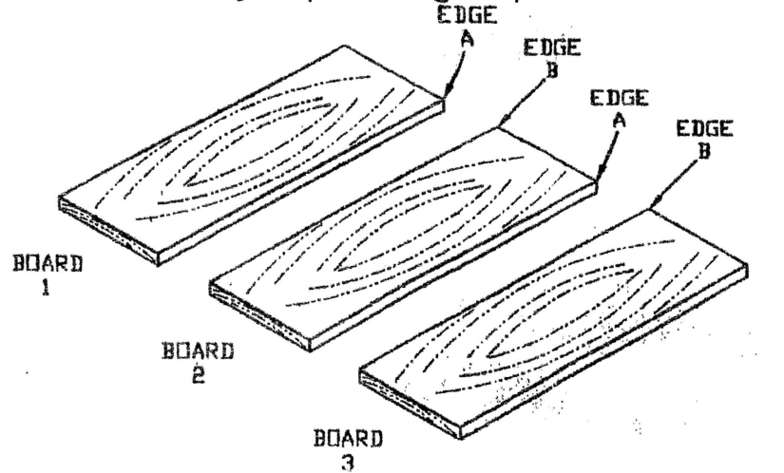

1. Lay out your boards matching both the grain and color. Label the edges such that an edge labeled A will match to an edge labeled B. Have your JointABILITY sides labeled A and B.
A
B
A
B
A
A
B
B
3. Check the fit of each joint.


4. Glue up the boards.
2. Trim each board
 using the label side
 of the JointABILITY

                                that matches the label
                                 on the board.

                                 Note: Do not flip the
                                 board end to end.
